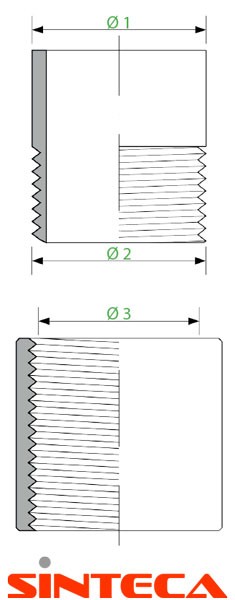

| DN | Ø 1 (mm) | Ø 2 (mm) | Ø 3 (mm) |
|---|---|---|---|
| 1/4" | 13,70 | 13,16 | 11,90 |
| 3/8" | 17,20 | 16,66 | 15,30 |
| 1/2" | 21,30 | 20,96 | 19,10 |
| 3/4" | 36,90 | 26,44 | 24,60 |
| 1" | 33,70 | 33,25 | 30,90 |
| 1 1/4" | 42,40 | 41,91 | 39,50 |
| 1 1/2" | 48,3 | 47,80 | 45,40 |
| 2" | 60,30 | 59,61 | 57,20 |
| 2 1/2" | 76,10 | 75,18 | 72,70 |
| 3" | 88,90 | 87,88 | 85,80 |
| 3 1/2" | 101,60 | 100,30 | 98,00 |
| 4" | 113,30 | 113,04 | 110,70 |
| 5" | 139,70 | 138,43 | 136,00 |
