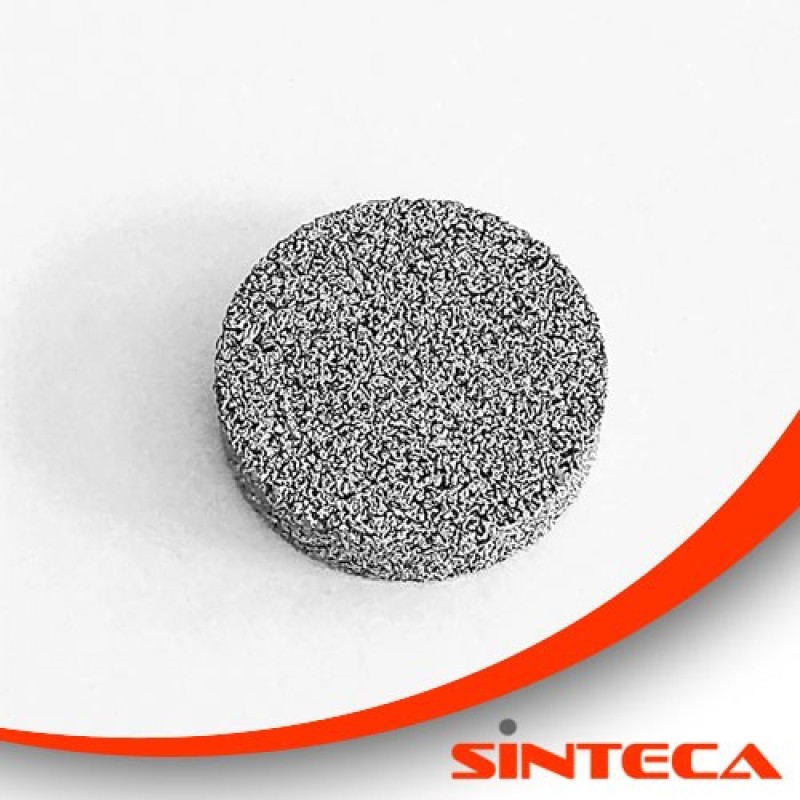

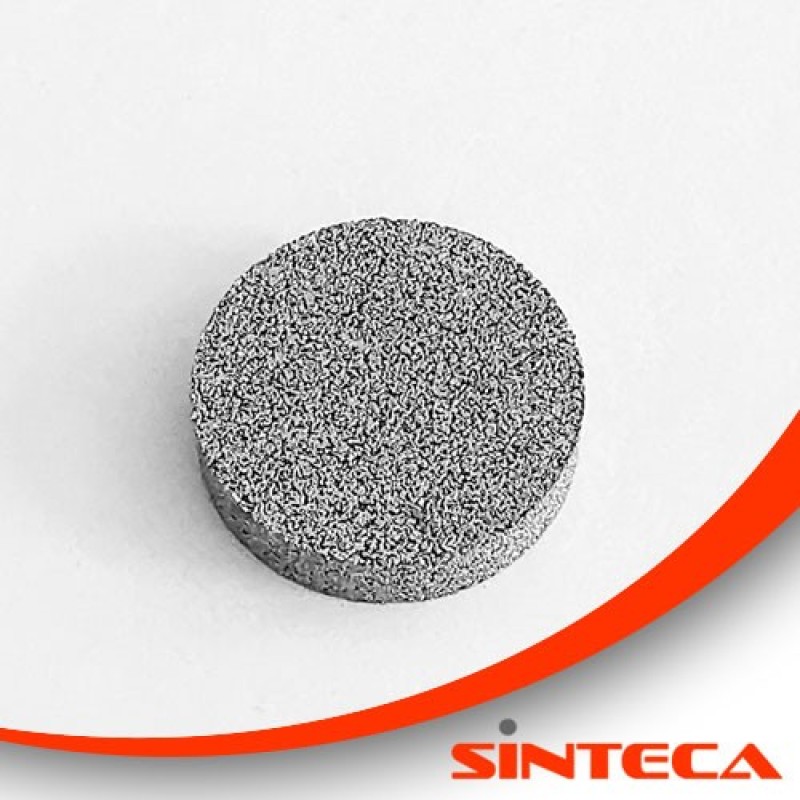

Filter disk made of sintered stainless steel, SSU

Sintered stainless steel washers made of AISI 316L

€ 4,23

zzgl. MwSt. | zzgl. Versandkosten | Lieferzeit 10-15 Tage

Product ID: 174102 | Stock: 50

Sintered stainless steel discs made of AISI 316L are high-quality filter elements for demanding filtration tasks in the food, pharmaceutical and chemical industries. The quality of the filters and the associated pore size are precisely controlled by the applied compacting pressure and the sintering temperature. These filter discs are characterized by their excellent corrosion resistance, high mechanical strength and precise pore size distribution. They are ideal for applications where reliable filtration is required with high standards of material quality and hygiene. The sintered stainless steel discs offer a long service life and can be supplied in different sizes and pore sizes to meet the specific requirements of each application.

Product informations
Name ID Stock Price
SSU2 D-3-3 174100 0 Inquire now
SSU5 D-3-3 174120 0 Inquire now
SSU10 D-3-3 174140 0 Inquire now
SSU25 D-3-3 174180 0 Inquire now
SSU2 D-6-3 174102 50 €4,23
SSU5 D-6-3 174122 0 Inquire now
SSU10 D-6-3 174142 0 Inquire now
SSU25 D-6-3 174182 0 Inquire now
SSU60 D-6-3 174220 34 €4,23
SSU2 D-10-3 174104 0 Inquire now
SSU5 D-10-3 174124 50 €4,23
SSU10 D-10-3 174144 0 Inquire now
SSU25 D-10-3 174184 0 Inquire now
SSU60 D-10-3 174222 0 Inquire now
SSU2 D-13-3 174106 0 Inquire now
SSU5 D-13-3 174126 0 Inquire now
SSU10 D-13-3 174146 0 Inquire now
SSU15 D-13-3 174160 0 Inquire now
SSU25 D-13-3 174186 0 Inquire now
SSU40 D-13-3 174200 0 Inquire now
SSU60 D-13-3 174224 0 Inquire now
SSU80 D-13-3 174240 0 Inquire now
SSU2 D-16-3 174108 0 Inquire now
SSU5 D-16-3 174128 0 Inquire now
SSU10 D-16-3 174148 0 Inquire now
SSU25 D-16-3 174188 0 Inquire now
SSU60 D-16-3 174226 0 Inquire now
SSU2 D-20-3 174110 49 €8,47
SSU5 D-20-3 174130 49 €8,47
SSU10 D-20-3 174150 13 €8,47
SSU25 D-20-3 174190 48 €8,47
SSU60 D-20-3 174228 75 €8,47
SSU2 D-25-3 174112 15 €8,88
SSU5 D-25-3 174132 20 €8,88
SSU10 D-25-3 174152 19 €8,88
SSU25 D-25-3 174192 23 €8,88
SSU60 D-25-3 174230 13 €8,88
SSU2 D-30-3 174114 0 Inquire now
SSU5 D-30-3 174134 0 Inquire now
SSU10 D-30-3 174154 0 Inquire now
SSU25 D-30-3 174194 113 €9,73
SSU60 D-30-3 174232 0 Inquire now
SSU2 D-38-3 174116 11 €11,42
SSU5 D-38-3 174136 12 €11,42
SSU10 D-38-3 174156 12 €11,42
SSU15 D-38-3 174162 0 Inquire now
SSU25 D-38-3 174196 0 Inquire now
SSU40 D-38-3 174202 0 Inquire now
SSU60 D-38-3 174234 0 Inquire now
SSU80 D-38-3 174242 0 Inquire now
SSU2 D-50-3 174118 14 €16,93
SSU5 D-50-3 174138 11 €16,93
SSU10 D-50-3 174158 10 €16,93
SSU25 D-50-3 174198 0 Inquire now
SSU60 D-50-3 174236 7 €16,93
Filter

Share:

  • Product information "Filter disc made of sintered stainless steel, SSU"

    Sintered stainless steel discs made of AISI 316L

    The grade of the filters and the associated pore size can be controlled via the applied compaction pressure and the size of the powder particles.

    Sintered stainless steel filters can be used for the microfiltration of gases or the depth filtration of liquids.

    Suitable for strongly oxidising environments, food and process water.

    Maximum operating temperature: 600ºC in an oxidising atmosphere, 850ºC in a reducing atmosphere.

    Questions about this item? More NIRO products

    Frequently Asked Questions (FAQ)

    How do I choose the right size?

    Please select the size according to your requirements and the available connections. The available sizes are listed in the product selection. If you are unsure, we will be happy to advise you personally.

  • SSU2 D-6-3 (174102) 1 gr.
    SSU60 D-6-3 (174220) 1 gr.
    SSU5 D-10-3 (174124) 2 gr.
    SSU2 D-20-3 (174110) 3 gr.
    SSU5 D-20-3 (174130) 3 gr.
    SSU10 D-20-3 (174150) 3 gr.
    SSU25 D-20-3 (174190) 3 gr.
    SSU60 D-20-3 (174228) 3 gr.
    SSU2 D-25-3 (174112) 4 gr.
    SSU5 D-25-3 (174132) 4 gr.
    SSU10 D-25-3 (174152) 1 gr.
    SSU25 D-25-3 (174192) 4 gr.
    SSU60 D-25-3 (174230) 4 gr.
    SSU25 D-30-3 (174194) 5 gr.
    SSU2 D-38-3 (174116) 6 gr.
    SSU5 D-38-3 (174136) 6 gr.
    SSU10 D-38-3 (174156) 6 gr.
    SSU2 D-50-3 (174118) 8 gr.
    SSU5 D-50-3 (174138) 8 gr.
    SSU10 D-50-3 (174158) 30 gr.
    SSU60 D-50-3 (174236) 27 gr.
