Insulating bolster
RBS insulation pads are used as additional layers in the flow channel to increase the temperature resistance (up to 1000°C) of fabric expansion joints.
- Tissue
- Fiber optics | Silicate fibre | Ceramic fibre fabric
-
Temperature Resistance
Depending on the material, temperature resistance is up to 1260 °C.
Additional Inner Layer
Additional inner layer for compensators made of mineral fiber or fiber mats.
Long Service Life
We use materials that have been tried and tested over many years for long service life.
Properties
RBS insulation pads are used as additional layers in the flow channel to increase the temperature resistance (up to 1000°C) of fabric expansion joints. The outer layer is always the fabric expansion itself and the insulating cushion is installed as an additional inner layer in the flow channel. For these products, we use the same materials that have been tried and tested over many years as for our expansion joints or bellows and extend them with inner layers made of mineral fiber or higher temperature-resistant Fiber mats, depending on the specific application.
Advantages
- Temperature resistance
- Additional inner layer for fabric compensators
- Made of mineral fibre or fibre mats
- Materials proven over many years
- Long service life

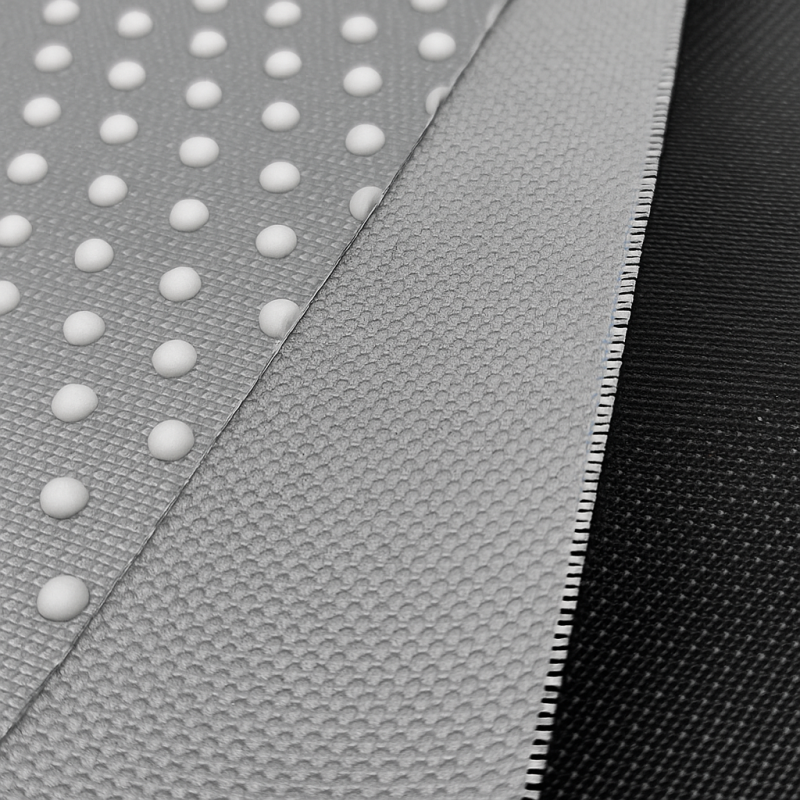

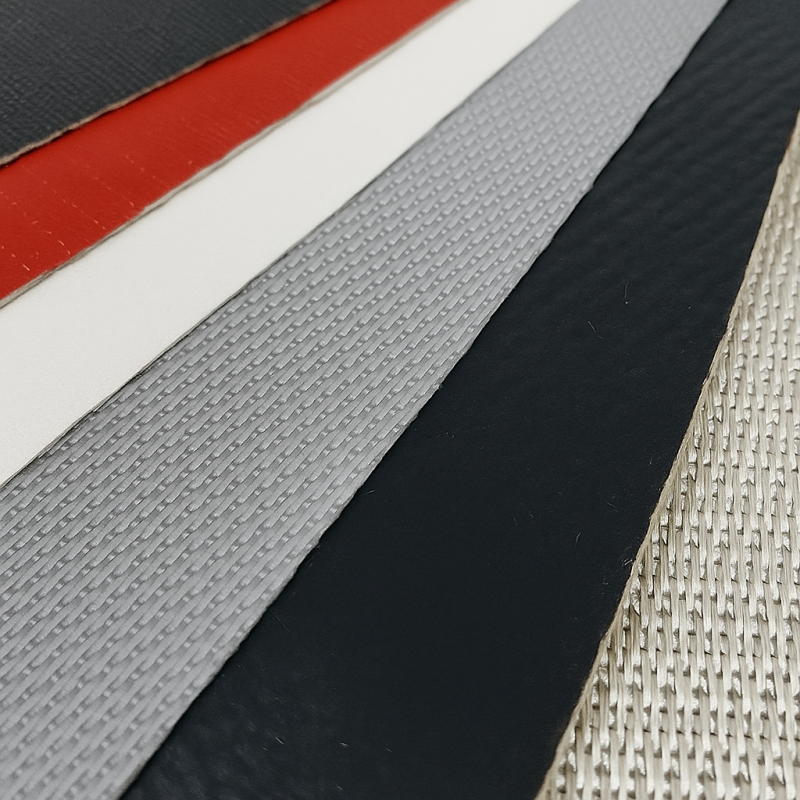

Fabric types
Fiberglass fabric: Either with PU or silicone coating on both sides is suitable for a temperature range of 250 - 550°C.
Silicate fiber fabric: With aluminium coating or vermiculite coating for temperatures up to approx. 1000°C, often used in steelworks and foundries due to its temperature resistance.
Ceramic Fiber Fabric: With metal reinforcement (INCONEL wire) suitable for temperatures up to approx. 1260°C, has a high tensile strength.
Frequently Asked Questions (FAQ)
Was ist ein Isolierbolster und wozu dient er?
Ein Isolierbolster ist eine mehrlagige Zusatzisolierung aus hochtemperaturbeständigen Faservliesen, die in den Strömungskanal eines Gewebekompensators eingelegt wird. Er schützt das tragende Balggewebe vor direkter Heißgasbelastung und erhöht die zulässige Medientemperatur auf bis zu 1000 °C.
Aus welchen Materialien bestehen Isolierbolster?
Je nach Temperaturanforderung kommen Silika-Faservlies (bis 1000 °C), Keramikfaservlies auf Aluminiumsilikat-Basis (bis 1260 °C) oder Glasfaservlies (bis 550 °C) zum Einsatz. Die Lagen werden passgenau zugeschnitten und bei Bedarf mit Hochtemperaturgarn vernäht.
Bis zu welcher Temperatur können Isolierbolster eingesetzt werden?
Standard-Isolierbolster aus Silika-Faservlies sind bis 1000 °C Dauertemperatur ausgelegt. Für höhere Temperaturen bis 1260 °C setzen wir Keramikfaser-Isolierungen ein. Die tatsächliche Grenze hängt von Medienart, Strömungsgeschwindigkeit und Kompensatorbauform ab.
Können Isolierbolster einzeln getauscht werden?
Ja. Die Isolierpakete lassen sich bei einer Revision einzeln aus dem Strömungskanal entnehmen und ersetzen, ohne den gesamten Kompensator ausbauen zu müssen. Das reduziert Stillstandszeiten und Wartungskosten erheblich.
Liefert SENN Isolierbolster in kundenspezifischen Abmessungen?
Ja. SENN fertigt Isolierbolster passgenau für jeden Kompensator-Nenndurchmesser und jede Einbausituation. Wir benötigen Innendurchmesser, Baulänge und Betriebstemperatur — auf Wunsch vermessen wir die bestehende Einbausituation vor Ort.
-
