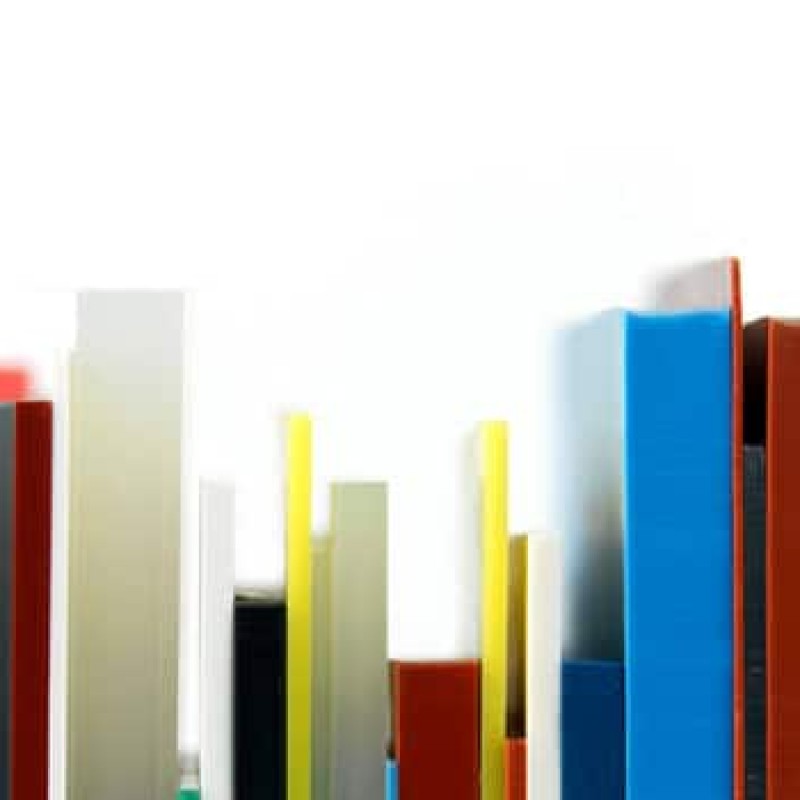

Silicone sheet goods
KS silicone sheet goods offer high performance and long life while maintaining good temperature resistance. For a material comparison of all elastomers (NBR, EPDM, silicone, TPE), see our Elastomers overview page.
- HARD
- 30 to 60 Shore A
- THICK
- 0.5 mm to 12 mm
- WIDTH
- Up to 1.2 m
-
Temperature resistant
Thermally stable over a wide temperature range -60°C to 230°C (250°C).
Various densities
Available in various hardnesses from 30 to 60 Shore A.
FDA compliant
Certain qualities suitable for contact with food and beverages.
CHARACTERISTICS
KS silicone sheet goods offer high performance and long life while maintaining good temperature resistance. The silicone sheets are the ideal material for gaskets and seals in industrial applications where unfavourable temperatures prevail or an inert, robust polymer is required.
Manufactured in a range of thicknesses from 0.5mm to 12mm, up to 1.2m wide on selected products and a Shore A hardness of 30-60, the silicone sheets are thermally stable over a wide temperature range (-60°C to 230°C/250°C). Available in standard colours - Translucent, Reddish Brown, White, Blue or Black (colour customisation possible).
Benefits
- Manufactured in a range of thicknesses from 0.5 mm to 12 mm
- Widths up to 1.2 m wide
- Shore A hardness from 30-60
- Thermally stable over temperature range -60°C to 230°C (250°C)
- Standard colours - translucent, reddish brown, white, blue or black (colour customisation possible)
- Ozone and UV resistance for outdoor applications
- Certain qualities FDA-approved for use in the food sector (regulation 21CFR177.2600)
- Certain qualities EC 1935/2004 compliant for materials and articles intended to come into contact with foodstuffs
- Certain qualities WRAS approved for drinking water (Water Regulations Advisory Scheme BS69200)
Industry sectors
- Electronics and lighting
- Aerospace
- Automotive industry
- Food and beverages
- HVAC
- Oil and gas
- Local traffic
- Construction
- Energy
- Industry
Applications
- Gaskets
- Vibration damping
- Vacuum membranes
- Gap filler
- Press pads
-
